Important - Wichtig -  Importanti - belangrijk - Ważne – Σημαντικό

This module does not provide quantization, scale processing, or pitch correction.
It applies a single global transposition across all channels, without per-channel pitch offsets.
Voltage processing is limited to precise offset only, with no scaling or attenuation.
Presets store only fixed transposition values.

TONE
145.00 €
Price without VAT & taxes

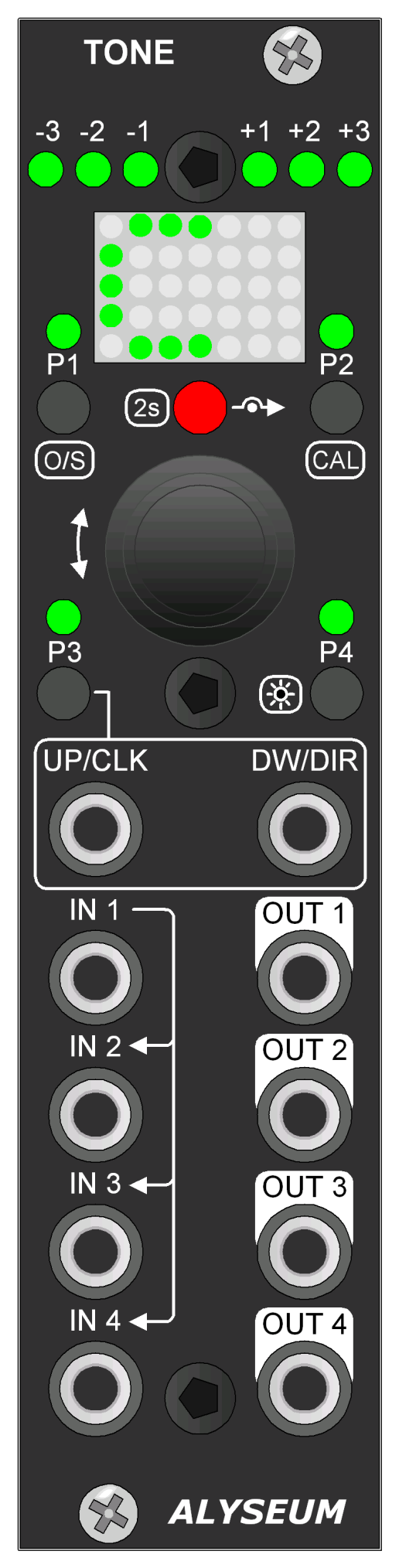

TONE is an analog transposition module for 4-voice polyphony, expandable up to 12 voices using the THRU expander module.

Ideal for musicians who demand ease of use, instant visual feedback, and high precision.

Key features:
  ●  Transposition: in semitones and/or octaves.
  ●  Unmatched accuracy: Summed voltages ensure faithful and stable transposition.
  ●  Intuitive interface: Clear, unambiguous controls with immediate access for fast
      and precise adjustments.
  ●  Real-time display: Instantly visualize the transposed note values.
  ●  Channels: Each input/output pair operates independently, sharing only
       the common transposition voltage.
  ●  Normalization: When an input (2 to 4, and up to 12 with the THRU module)
      is not connected, it receives the signal from input 1.
  ●  Memory: 4 directly accessible presets provide instant recall of your
       favorite transposition settings.
  ●  Bypass: Instantly enable or disable transposition (red button).
  ●  External control: Two jack inputs allow control of transposition via external signals,
       in two modes: UP/DOWN or CLK/DIR.
  ●  Smooth: Selectable transitions between transposition values can be analogically
       smoothed.

Technical details
   ●  Gain error between In and Out: maximum 0,1%
   ●  Outputs buffered with a very low drift buffer
   ●  Power requirement +/-15 mA @ +/- 12V.
   ●  Polarised power header and protection against reverse polarity.
   ●  Eurorack 6 HP wide, maximum depth 26mm.
